Cartoon Fatty Chance Vought F4U Corsair

Homemade RC Plane

Cartoon Fatty F4U Corsair RC Plane

Materials: XPS foam 3-5mm (or Depron 3mm, 6mm) , Balsa wood 4x4,
Aircraft Birch (!) Plywood 1.5mm, UHU Por glue
Wingspan: 762 mm (30")
Length: 630mm
Flying Weight: 310g (10,5 oz)
Motor: X2305 KV1450 (25g)
Propeller: 1047
Receiver: FrSky S6R (12g)
ESC: SunnySky X 18A (9g)
Servos:EMAX ES9051 (5g)JX PDI-1143HB
LiHV battery: 1100mah 2S 7.6V
Stainless Steel Spring Wire 1,6 mm (landing gear)
Wheels 2,25"
Carbon Tube (push rods): 500x2x1mm
Round Pivot Pins D3 x W10 x L48mm:
Hinge Linker (24mm):
Nylon Control Horn with Clevis (0,52+0,34g):
Control Horn (0,5g)

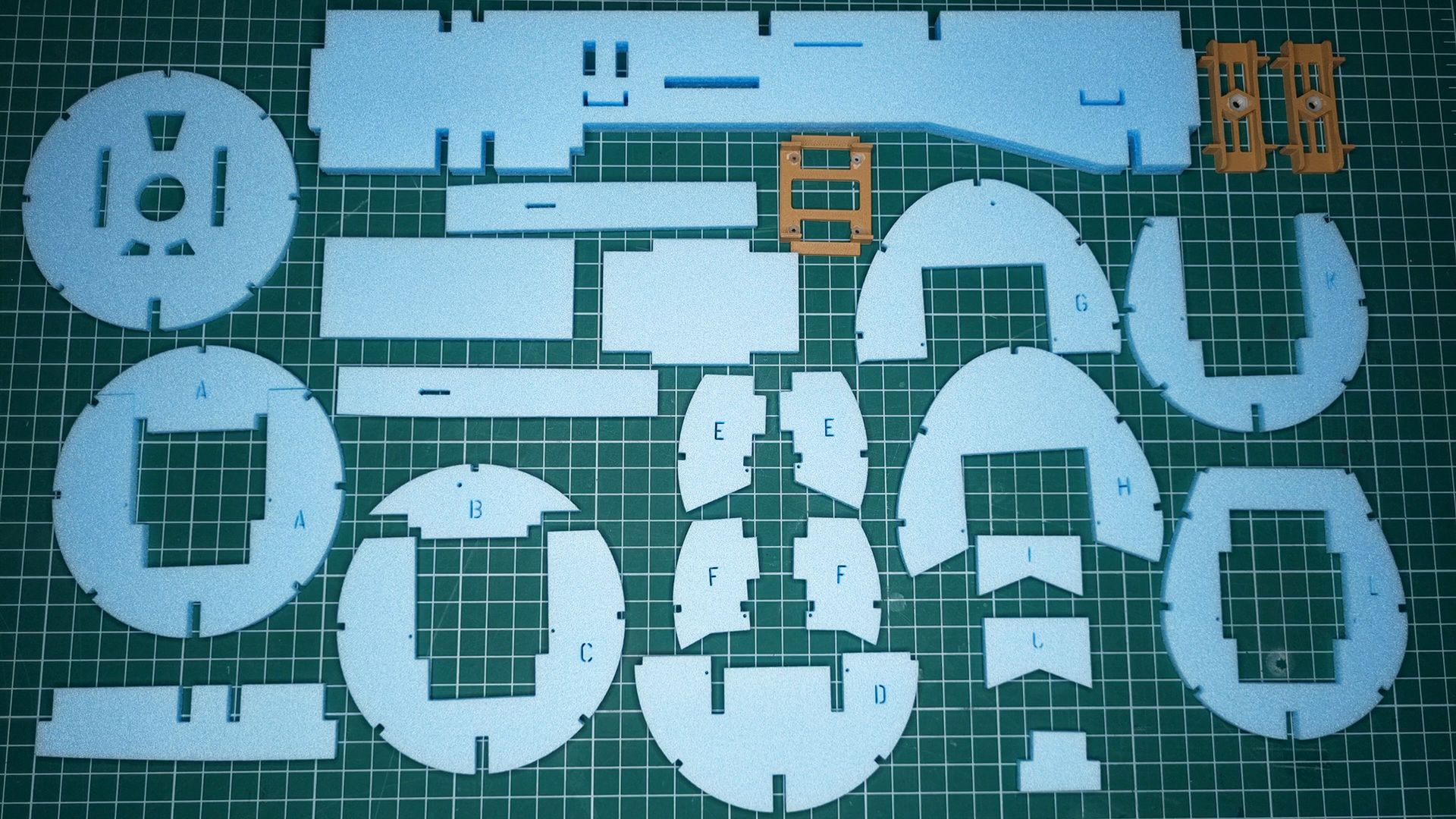

Two Corsairs Plans (paper templates + DXF laser cut files)

Print in actual size (100%) A3 297x420 mm on 250g/m2 paper. Download PDF and DXF files (€7) в pубляx

Fatty Corsair plans available for printing on A1, A3, A4 paper and SVG/DXF files
Normal Corsair plans available A4 210×297 mm and A3 PDF and SVG/DXF files. Download free example If you need 6mm version write me a message.

Fatty RC Corsair plans

Normal F4U Corsair

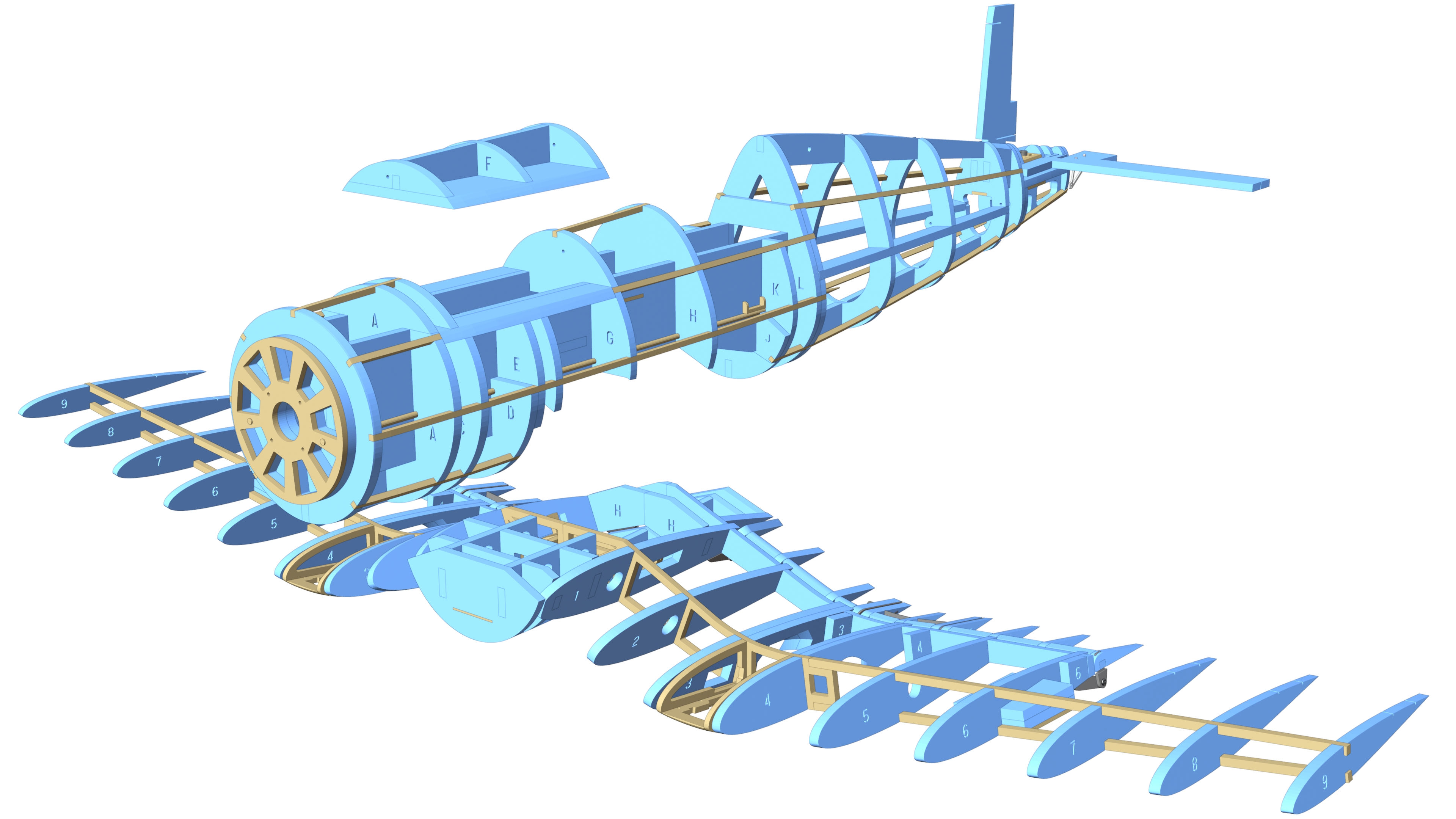

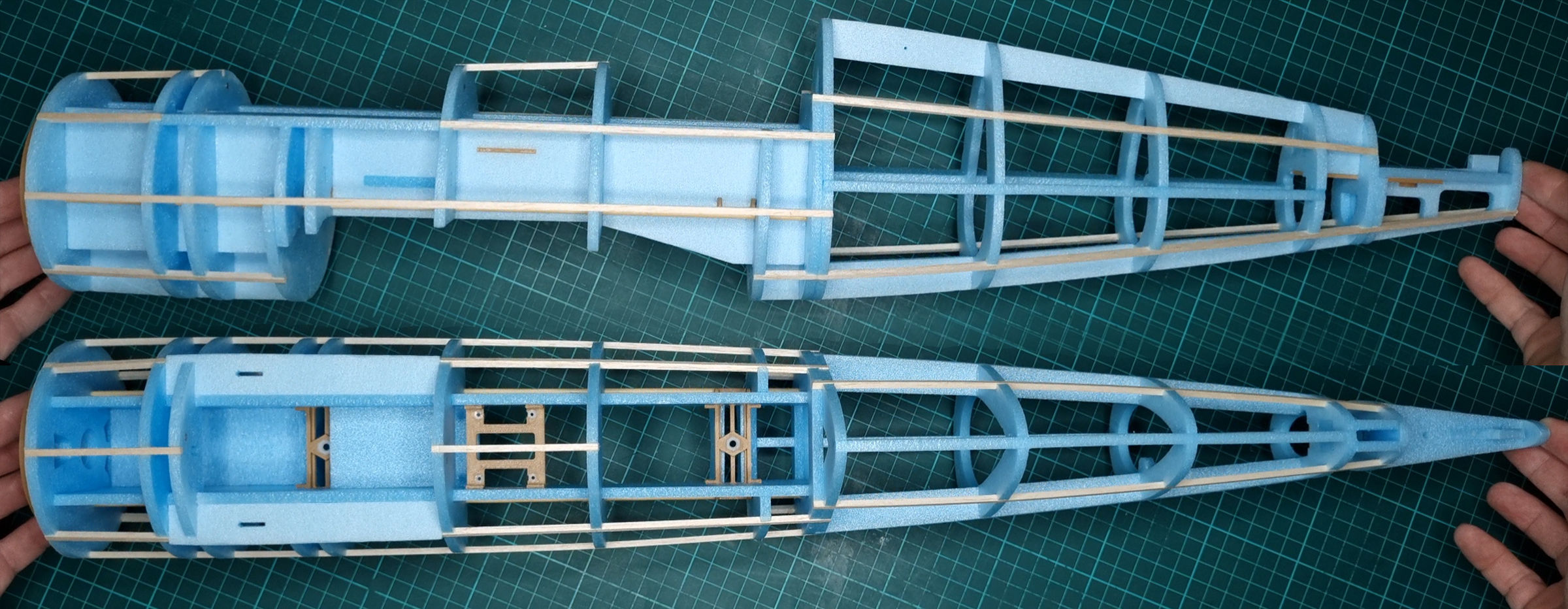

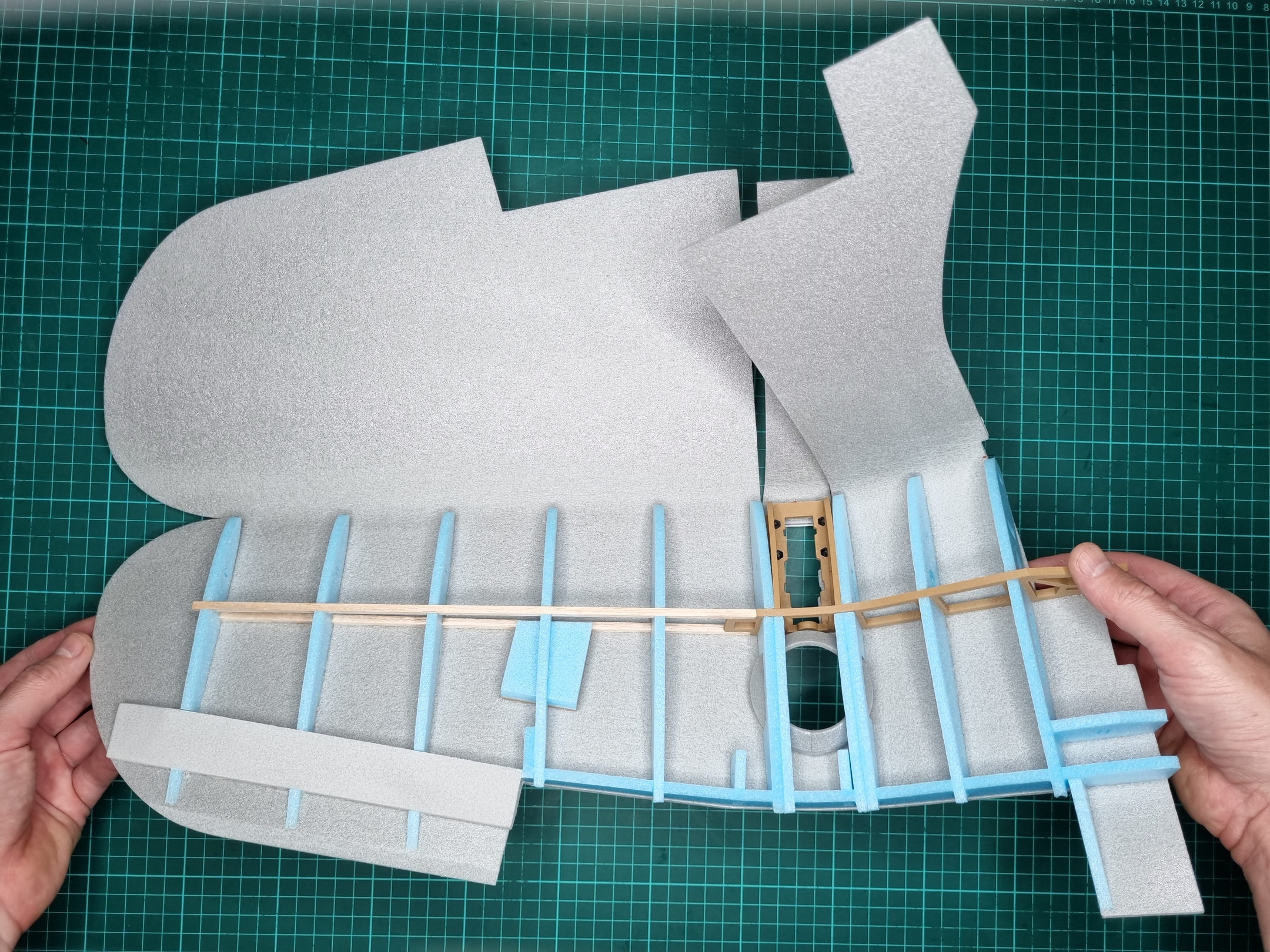

F4U Corsair RC plans

Wingspan: 1000mm (40")
Flying Weight: ≈450g

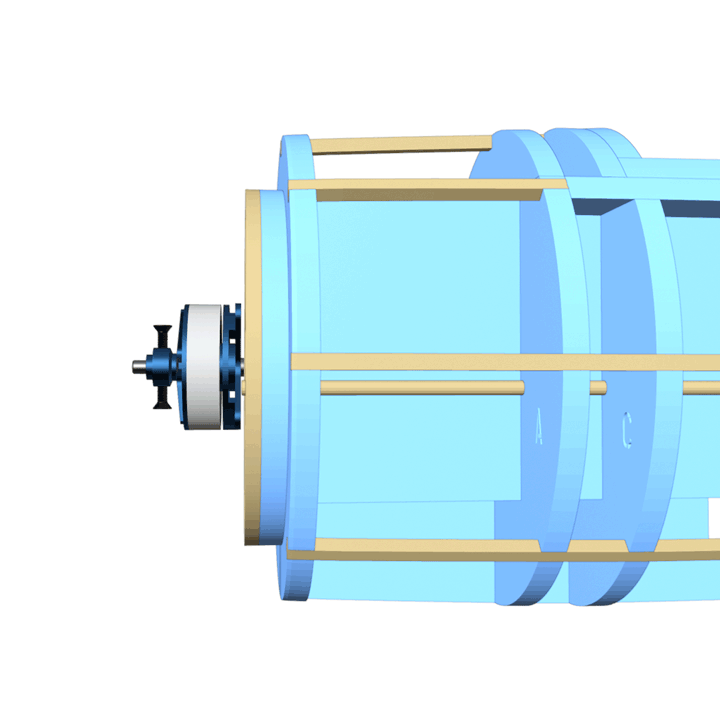

Motor: X2305 KV1450 (25g)
Propeller: 1047
Receiver: FrSky S6R (12g)
ESC: SunnySky X 18A (9g)
Servos:EMAX ES08D II (9g) x 4 ,
LiHV battery: 1100mah 2S 7.6V

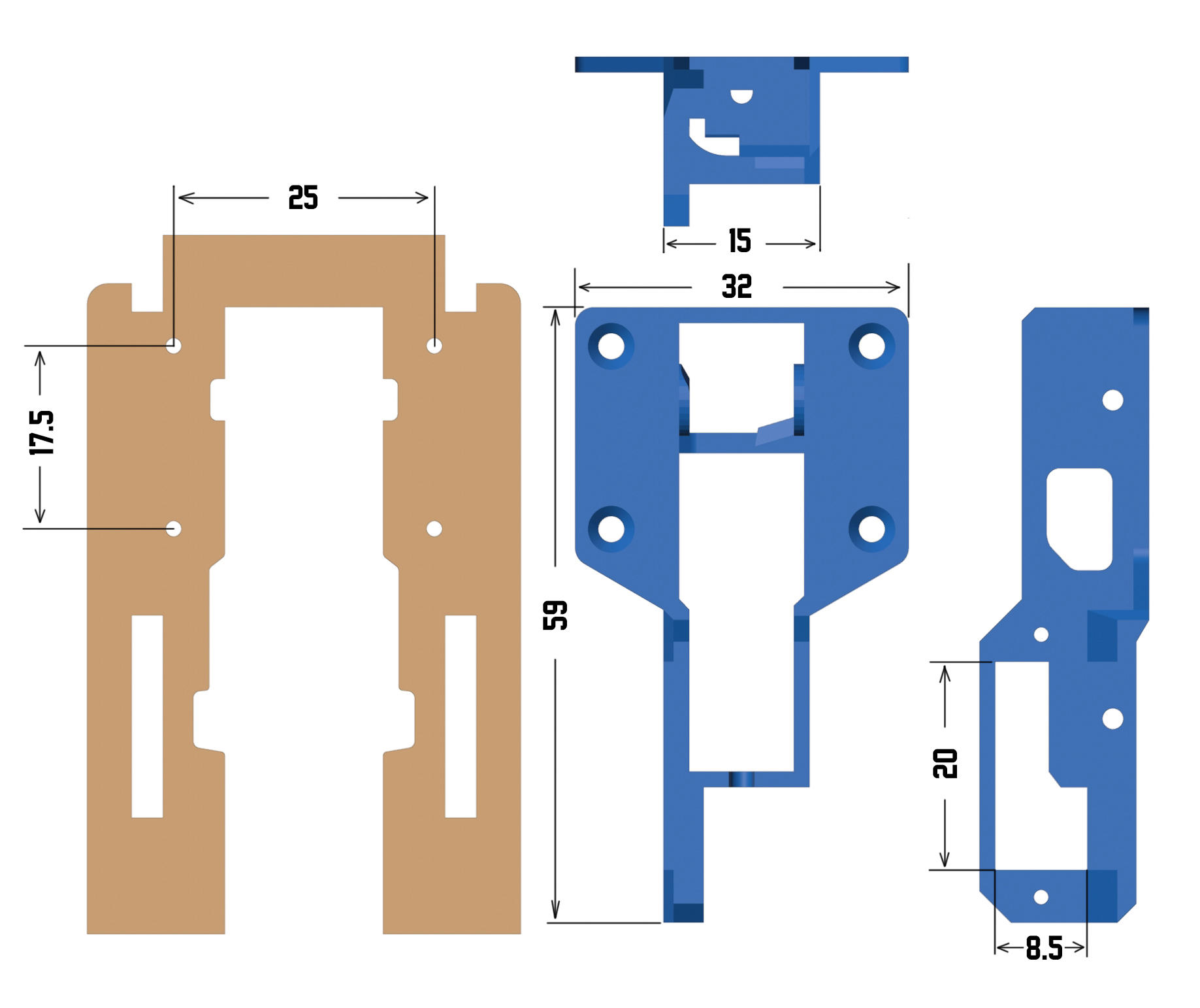

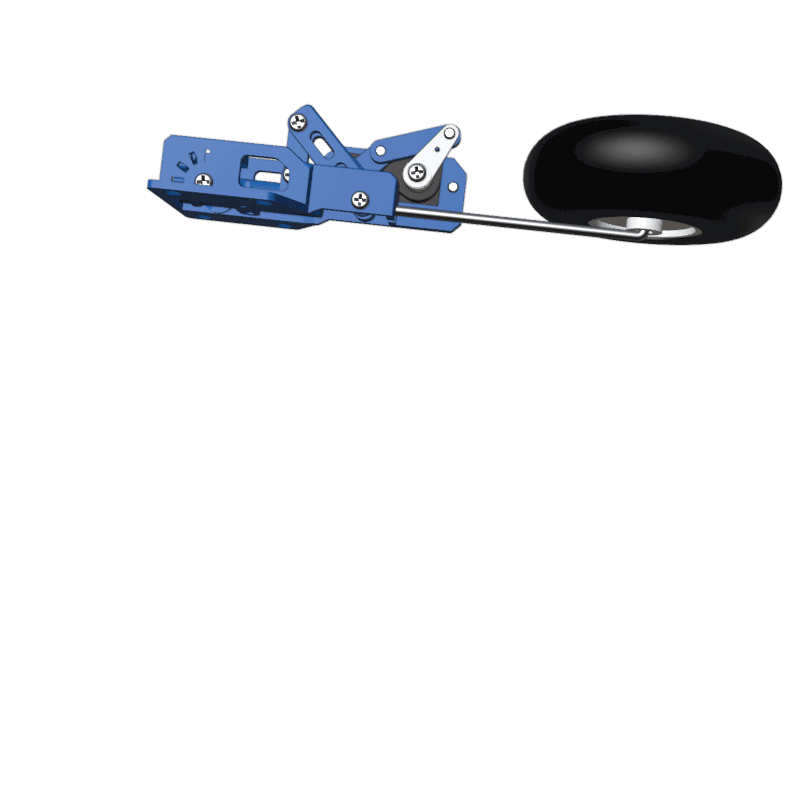

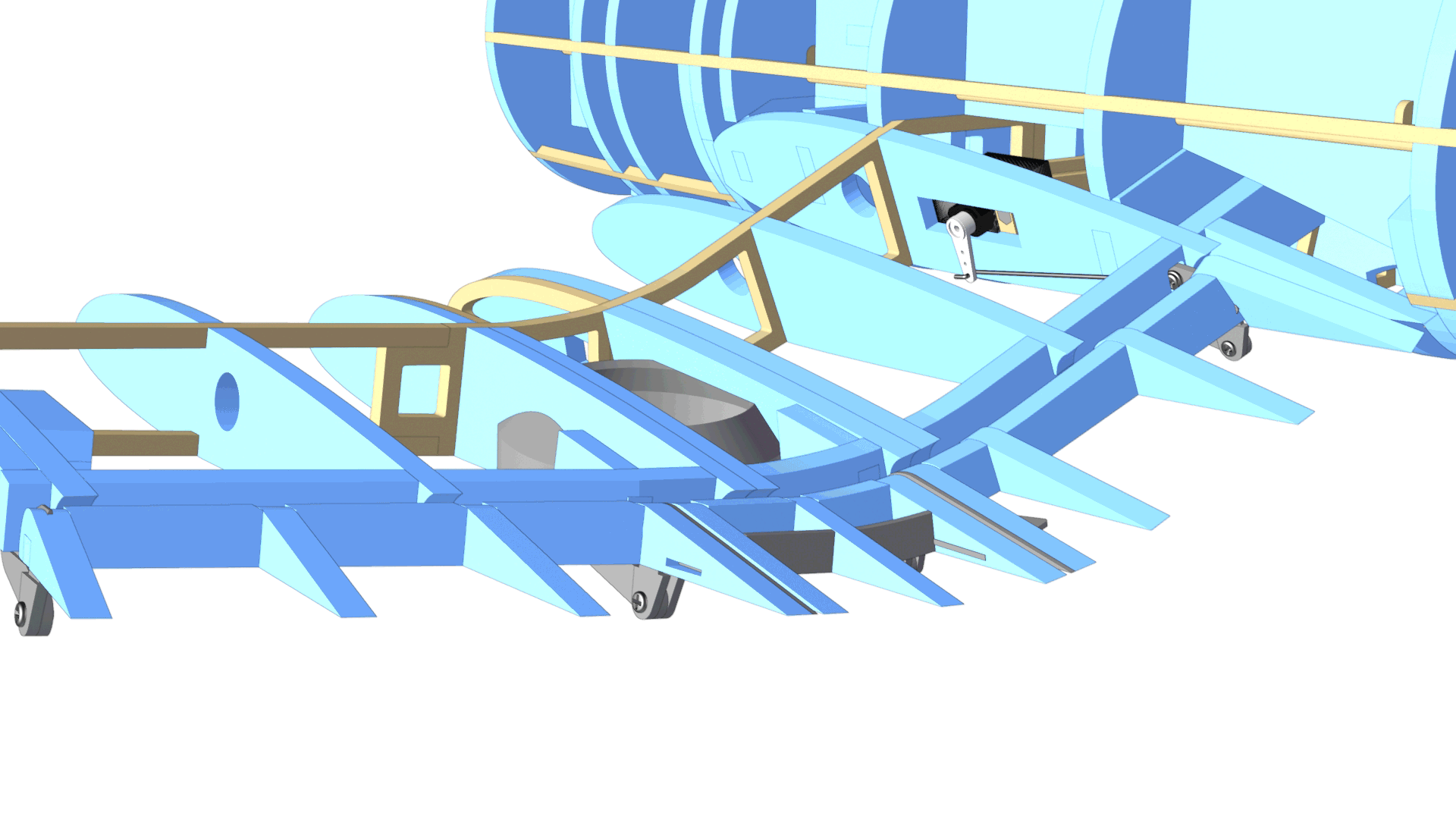

Retractable Landing Gear (25g) 90 Degree Rotating needed
Stainless Steel Spring Wire 2 mm
Wheels 2"
Tail wheel 19mm
Carbon Strips: 0.5mm x 3mm
Carbon push rods: 500x2x1mm
Nylon Control Horn with Clevis (0,52+0,34g):
Control Horn (0,5g)
Transparent plastic screws 4x45
Small Nylon screws: 2mm

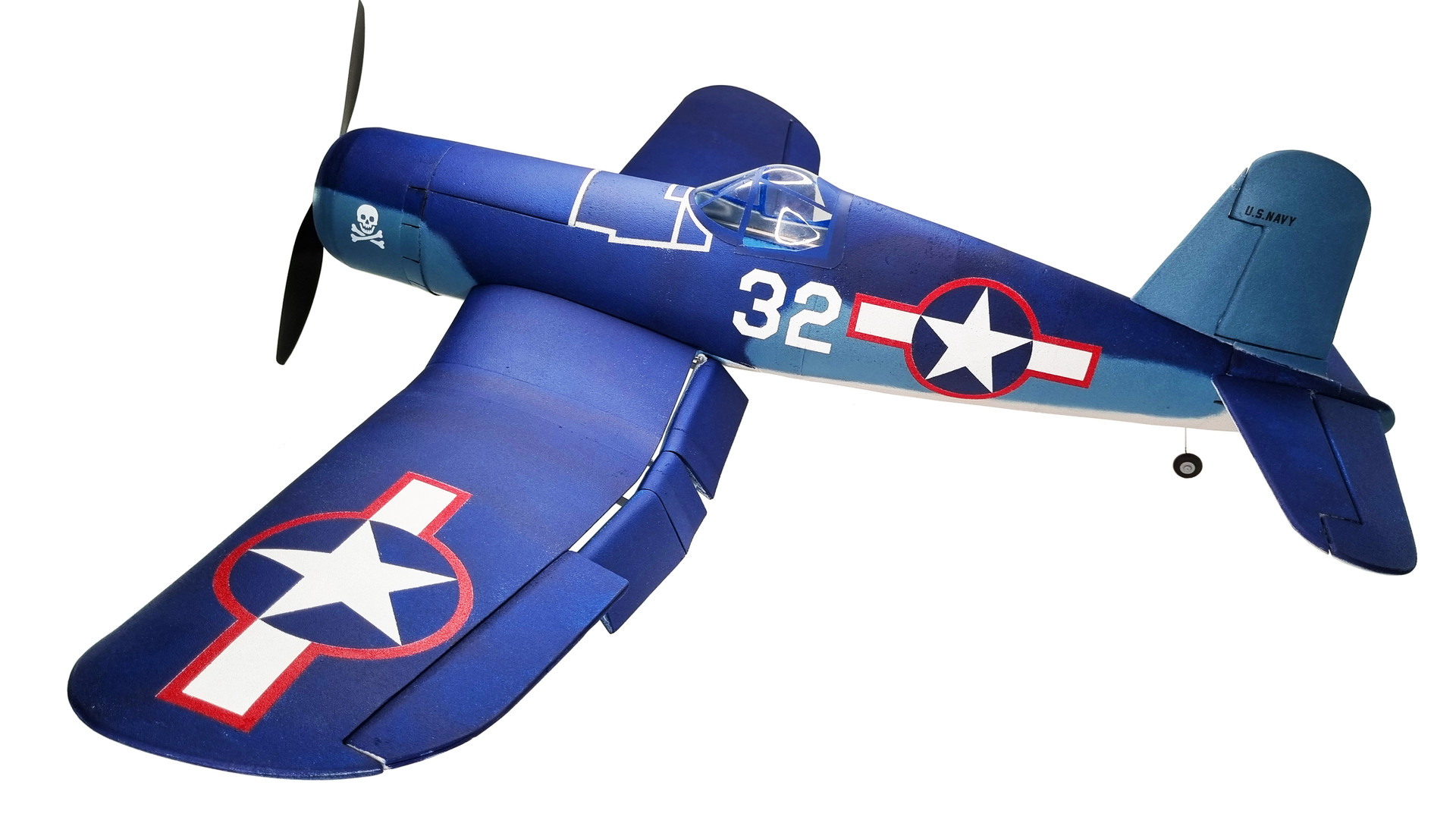

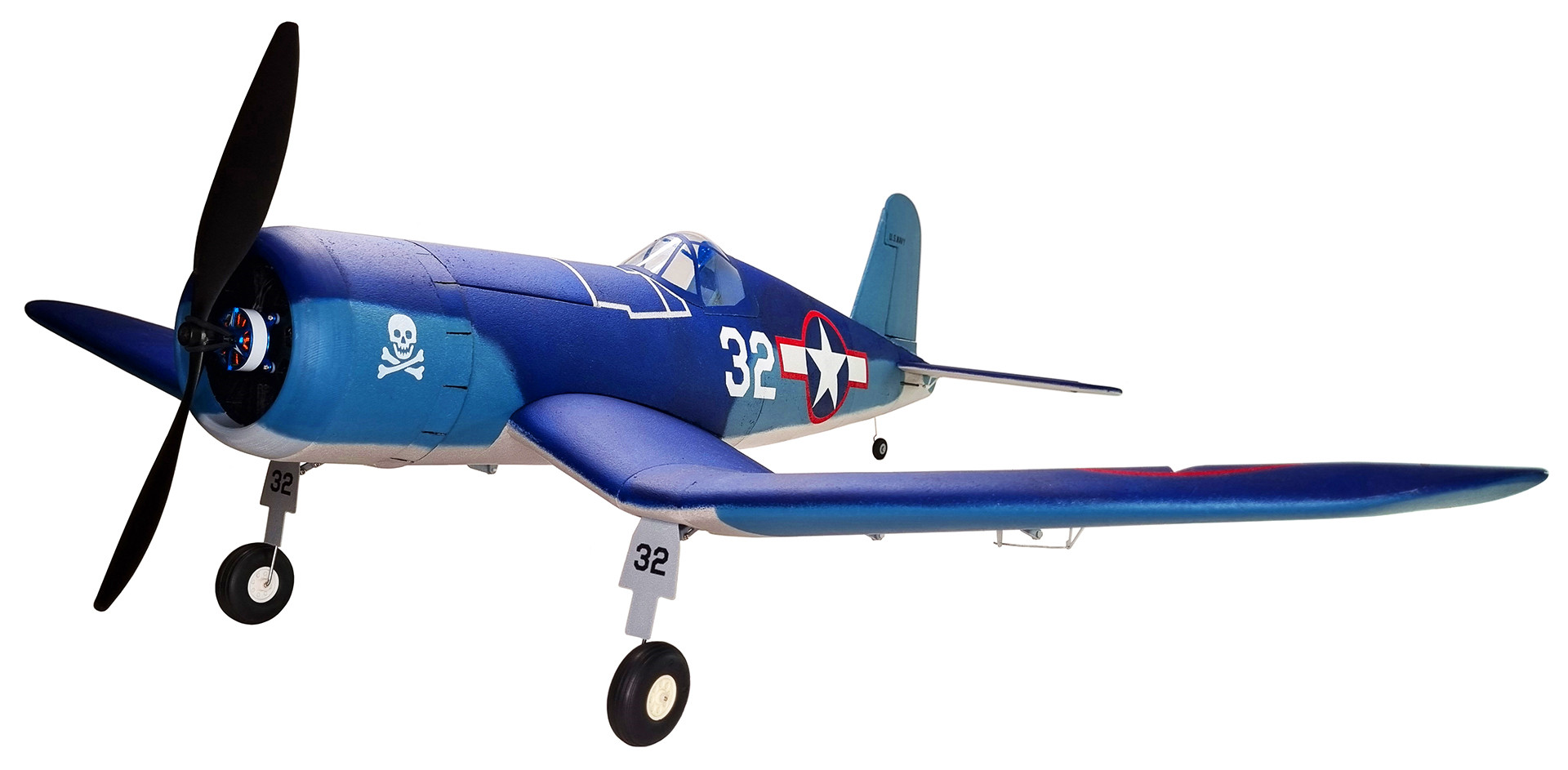

F4U Corsair RC plane
